Simulation and Impact of Environmental Temperature Changes on Ferrofluid Magnetic Dipoles Fe3O4-TMAH

Aziza Tanzila Meilenia, Nadiya Miftachul Chusna, Yoyok Adisetio Laksono, Hari Wisodo, Sunaryono Sunaryono

Abstract

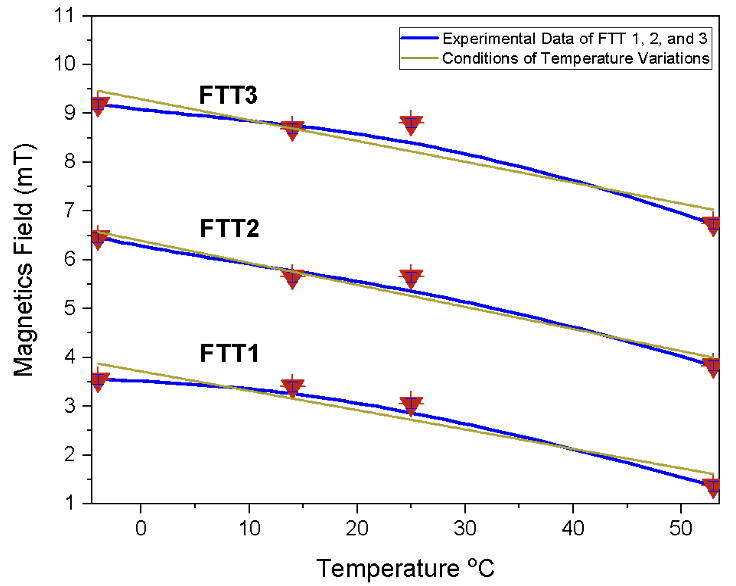

This research examines the simulation of magnetic dipole interactions in ferrofluids at various environmental temperatures. Ferrofluids have a lot of potential, such as in cooling machines and in the medical field, including magnetic hyperthermia. Apart from focusing on simulations, this research also focuses on ferrofluid experiments. Fe3O4 nanoparticles were successfully synthesized using the coprecipitation method. The synthesized Fe3O4 was characterized using XRD which showed that the Fe3O4 crystal size was around 10.82 nm in the form of a cubic spinel structure. Then ferrofluid was fabricated using TMAH surfactant with variations in H2O composition. The magnetic properties of the ferrofluid were successfully characterized using the VSM instrument. The results of VSM data analysis show that the saturation magnetization value of ferrofluid with sample codes FTT1, FTT2, and FTT3 is 3.69, 2.61, and 1.97 emu/mL, respectively. The magnetic field of each sample shows a significant increase as the environmental temperature changes from 53 °C to -4 °C. This is because the orientation of the magnetic dipole in the sample is more stable with decreasing environmental temperature, so that the orientation of the sample's magnetic moment becomes more directional. The simulation results show that samples with low ambient temperatures have more regular magnetic dipole moments, thus strengthening the magnetic properties of the ferrofluid. The magnetic dipole moment from the simulation results in a value of 9.50 × 10-3 T. The magnetic dipole moment measurement is slightly higher than the experimental results which reached 1.15 × 10-3 T. The difference in the magnetic dipole moment between the simulation results and the results experiments can be affected by limitations in the number of particles used in the simulation.

Keywords


Simulation; magnetic dipole; ferrofluid

Full Text:

PDF

References


J. Philip, “Magnetic nanofluids (Ferrofluids): Recent advances, applications, challenges, and future directions,” Adv. Colloid Interface Sci., vol. 311, p. 102810, Jan. 2023, doi: 10.1016/j.cis.2022.102810.

M. Bezaatpour and M. Goharkhah, “Effect of Magnetic Field on the Hydrodynamic and Heat Transfer of Magnetite Ferrofluid Flow in a Porous Fin Heat Sink,” J. Magn. Magn. Mater., vol. 476, pp. 506–515, 2019.

S. Wiriyasart, P. Suksusron, C. Hommalee, A. Siricharoenpanich, and P. Naphon, “Heat Transfer Enhancement of Thermoelectric Cooling Module with Nanofluid and Ferrofluid as Base Fluids,” Case Stud. Therm. Eng., vol. 24, p. 100877, 2021.

S. O. Giwa, M. Sharifpur, and J. P. Meyer, “Effects of Uniform Magnetic Induction on Heat Transfer Performance of Aqueous Hybrid Ferrofluid in a Rectangular Cavity,” Appl. Therm. Eng., vol. 170, p. 115004, Apr. 2020.

M. S. Darwish et al., “The Heating Efficiency and Imaging Performance of Magnesium Iron Oxide tetramethyl Ammonium Hydroxide Nanoparticles for Biomedical Applications,” Nanomaterials, vol. 11, no. 5, p. 1096, 2021.

Á. Sanz-Felipe and J. C. Martín, “Analysis of temperature dependence in ferrofluid optical transmission dynamics after magnetic field commutation,” J. Magn. Magn. Mater., vol. 529, p. 167836, Jul. 2021.

H. Abbasov, “Modeling of anisotropic thermal conductivity of ferrofluids,” J. Dispers. Sci. Technol., vol. 41, no. 7, pp. 1030–1036, Jun. 2020, doi: 10.1080/01932691.2019.1614040.

S. M. Mousavi, A. A. R. Darzi, and M. Li, “Modelling and Simulation of Flow and Heat Transfer of Ferrofluid under Magnetic Field of Neodymium Block Magnet,” Appl. Math. Model., vol. 103, pp. 238–260, Mar. 2022, doi: 10.1016/j.apm.2021.10.019.

R. M. Oliveira and J. A. Miranda, “Fully nonlinear simulations of ferrofluid patterns in a radial magnetic field,” Phys. Rev. Fluids, vol. 5, no. 12, p. 124003, Dec. 2020, doi: 10.1103/PhysRevFluids.5.124003.

D. Nedelcu and T. Latinovic, “PyChart – A Python module for analysis and visual view of 2D/3D Charts,” J. Phys. Conf. Ser., vol. 1781, no. 1, p. 012044, Feb. 2021, doi: 10.1088/1742-6596/1781/1/012044.

L. Addepalli et al., “Assessing the Performance of Python Data Visualization Libraries: A Review,” Int. J. Comput. Eng. Res. Trends, vol. 10, pp. 28–39, Jan. 2023, doi: 10.22362/ijcert/2023/v10/i01/v10i0104.

S. Cao, Y. Zeng, S. Yang, and S. Cao, “Research on Python Data Visualization Technology,” J. Phys. Conf. Ser., vol. 1757, no. 1, p. 012122, Jan. 2021, doi: 10.1088/1742-6596/1757/1/012122.

C. R. Harris et al., “Array programming with NumPy,” Nature, vol. 585, no. 7825, pp. 357–362, Sep. 2020, doi: 10.1038/s41586-020-2649-2.

L. L. Adebayo et al., “Recent advances in the development of Fe3O4-based microwave absorbing materials,” Ceram. Int., vol. 46, no. 2, pp. 1249–1268, Feb. 2020, doi: 10.1016/j.ceramint.2019.09.209.

A. T. Semeano et al., “Effects of Magnetite Nanoparticles and Static Magnetic Field on Neural Differentiation of Pluripotent Stem Cells,” Stem Cell Rev. Rep., vol. 18, no. 4, pp. 1337–1354, Apr. 2022, doi: 10.1007/s12015-022-10332-0.

S. Kumar, M. Kumar, and A. Singh, “Synthesis and characterization of iron oxide nanoparticles: a brief review,” Contemp. Phys., vol. 62, no. 3, pp. 144–164, Jul. 2021, doi: 10.1080/00107514.2022.2080910.

G. Tom, S. Philip, R. Isaac, P. K. Praseetha, S. G. Jiji, and V. V. Asha, “Preparation of an efficient and safe polymeric-magnetic nanoparticle delivery system for sorafenib in hepatocellular carcinoma,” Life Sci., vol. 206, pp. 10–21, Aug. 2018.

S. Sunaryono et al., “The effect of Fe3O4 concentration to photocatalytic activity of Fe3O4@TiO2-PVP core-shell nanocomposite,” J. Phys. Conf. Ser., vol. 1595, no. 1, p. 012003, Jul. 2020, doi: 10.1088/1742-6596/1595/1/012003.

G. Asab, E. A. Zereffa, and T. Abdo Seghne, “Synthesis of Silica-Coated Fe3O4 Nanoparticles by Microemulsion Method: Characterization and Evaluation of Antimicrobial Activity,” Int. J. Biomater., vol. 2020, p. e4783612, Mar. 2020.

K. Wu, D. Su, J. Liu, R. Saha, and J.-P. Wang, “Magnetic Nanoparticles in Nanomedicine”.

A. Zen et al., “Long-Range Ionic and Short-Range Hydration Effects Govern Strongly Anisotropic Clay Nanoparticle Interactions,” J. Phys. Chem. C, vol. 126, no. 18, pp. 8143–8151, May 2022, doi: 10.1021/acs.jpcc.2c01306.

P. N. Oliveira et al., “Magnetite nanoparticles with controlled sizes via thermal degradation of optimized PVA/Fe (III) complexes,” J. Magn. Magn. Mater., vol. 460, pp. 381–390, 2018.

L. S. Ganapathe, M. A. Mohamed, R. Mohamad Yunus, and D. D. Berhanuddin, “Magnetite (Fe3O4) Nanoparticles in Biomedical Application: From Synthesis to Surface Functionalisation,” Magnetochemistry, vol. 6, no. 4, p. 68, Dec. 2020.

R. Jain, V. Luthra, and S. Gokhale, “Probing influence of rare earth ions on structural, magnetic and optical properties of magnetite nanoparticles,” J. Magn. Magn. Mater., vol. 456, pp. 179–185, Jun. 2018.

A. A. Ibiyemi, G. T. Yusuf, and A. Olusola, “Influence of temperature and magnetic field on rheological behavior of ultra-sonicated and oleic acid coated cobalt ferrite ferrofluid,” Phys. Scr., vol. 96, no. 12, p. 125842, Dec. 2021, doi: 10.1088/1402-4896/ac2ecb.

W. (李望旭) Li et al., “Measured viscosity characteristics of Fe3O4 ferrofluid in magnetic and thermal fields,” Phys. Fluids, vol. 35, no. 1, p. 012002, Jan. 2023, doi: 10.1063/5.0131551.

M. Anand, “Thermal and dipolar interaction effect on the relaxation in a linear chain of magnetic nanoparticles,” J. Magn. Magn. Mater., vol. 522, p. 167538, Mar. 2021, doi: 10.1016/j.jmmm.2020.167538.

X. Liu, Y. Tian, and L. Jiang, “Manipulating Dispersions of Magnetic Nanoparticles,” Nano Lett., vol. 21, no. 7, pp. 2699–2708, Apr. 2021, doi: 10.1021/acs.nanolett.0c04757.

C. Kittel, Introduction to Solid State Physics. John Wiley & Sons, Inc, 2005.

A. Lavanya, S. Sindhuja, L. Gaurav, and W. Ali, “A Comprehensive Review of Data Visualization Tools: Features, Strengths, and Weaknesses,” Int. J. Comput. Eng. Res. Trends, vol. 10, no. 1, pp. 10–20, Jan. 2023, doi: 10.22362/ijcert/2023/v10/i01/v10i0102.
